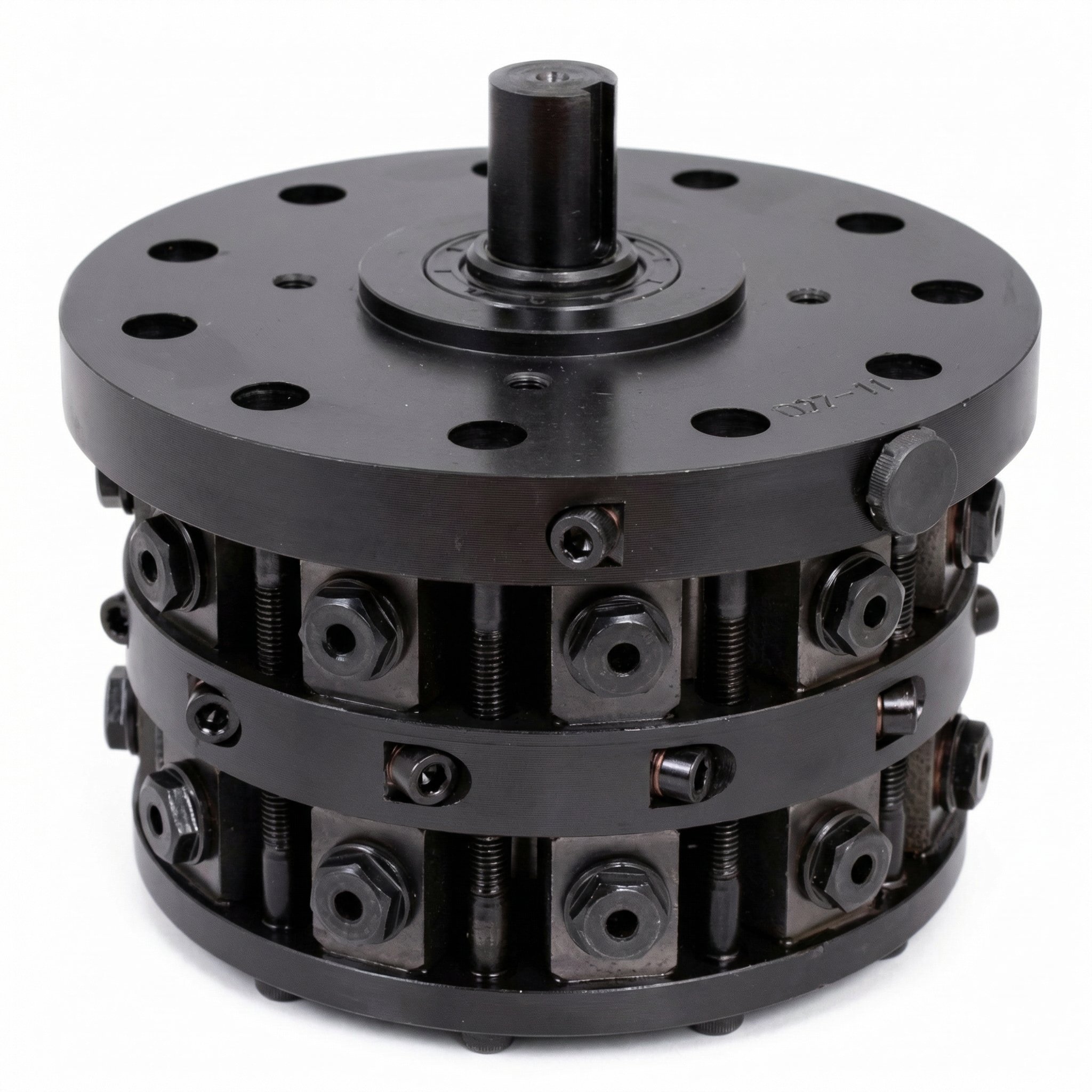

RK Series, Ultra-High Pressure Radial Piston Pump, Max.Pressure 1200bar

The RK Series ultra-high pressure radial piston pump features a radial arrangement structure combined with valve-type flow distribution, delivering high-pressure output, strong suction capability, and low-noise operation while effectively preventing cavitation.

Precision machining paired with manual lapping processes ensures high assembly accuracy and stable operation. Customizable multi-row and multi-port configurations available.

Key Features and Advantages:

Performance Advantages

  • Ultra-High Pressure & Strong Suction  ·Low Noise Operation  · Excellent Cavitation Resistance (no air suction)

Structural Design

  • Innovative Radial Arrangement Layout with up to 9 pistons per row. · Precise and reliable Valve-Type Distribution System  ·Customizable Single-Port or Multi-Port Output

Manufacturing Process

  • Precision CNC Machining for Core Components
  • Hand Grinding Process for Critical sealing surfaces and mating faces

Stability & Reliability

  • Fixed Displacement, Stable Flow
  • Precise High-Pressure Output
  • Long Service Life Design

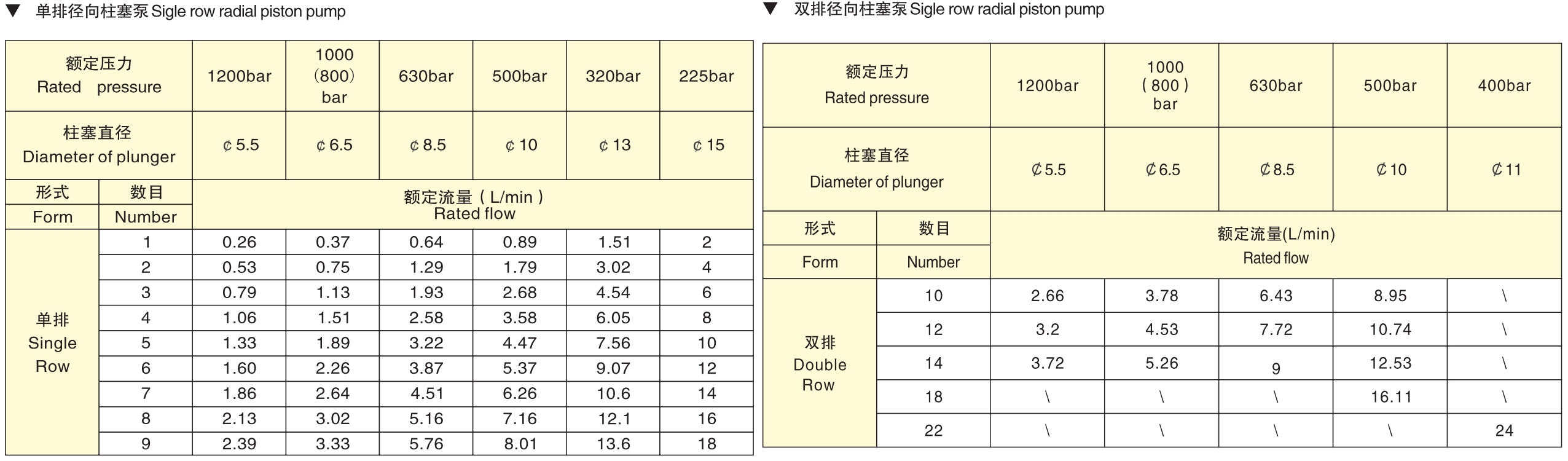

Technical Specs
