High Pressure Axial Piston Pump, Max. Pressure 700 bar, Max. Plunger Diameter φ 10

51 Views

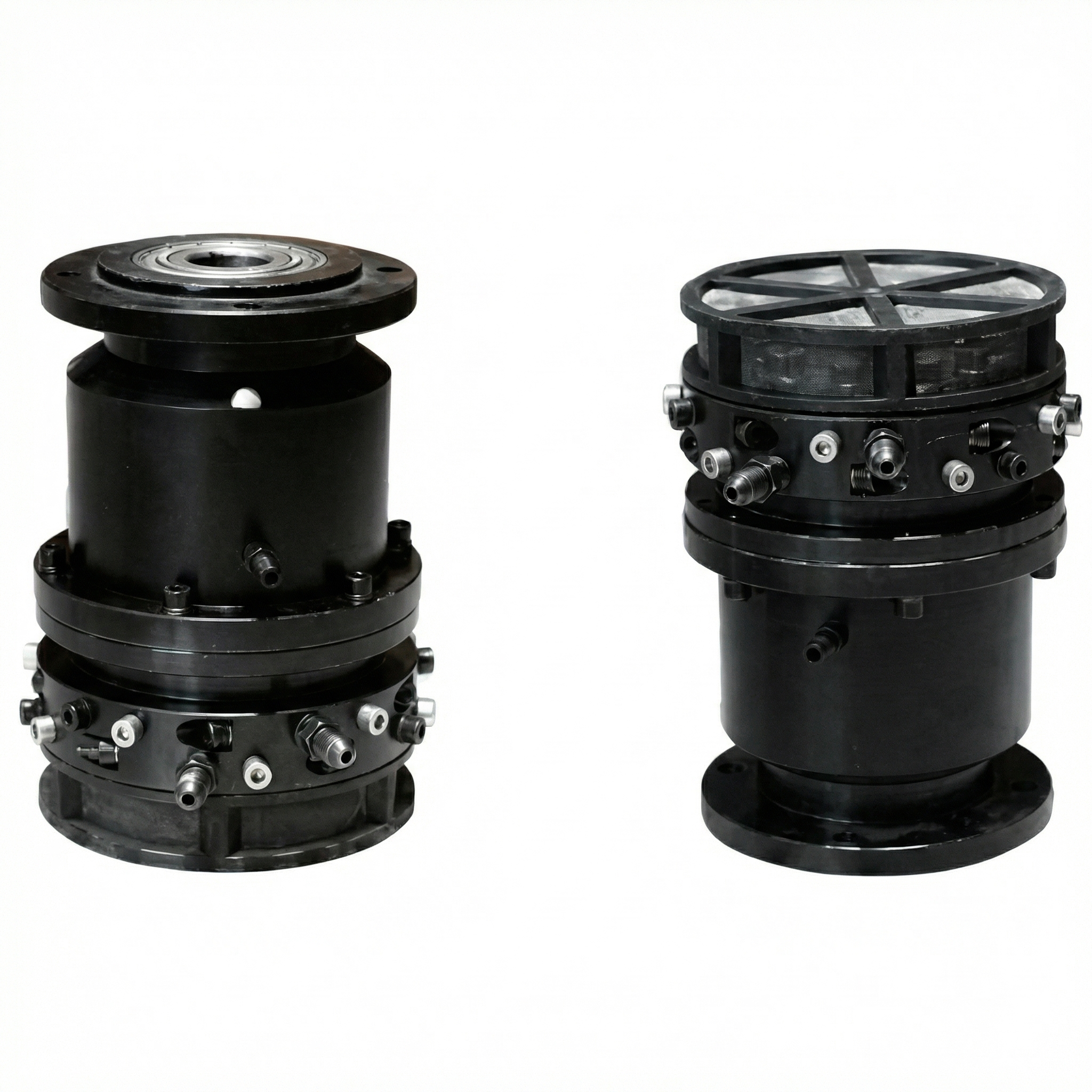

High-Pressure Axial Piston Pump

The high-pressure axial piston pump features an axial piston design with precision-machined components for stable, smooth quantitative oil supply. It delivers excellent performance with high pressure stability, low noise operation, superior contamination resistance, and precise compound flow control. The bottom suction design ensures strong suction capacity and eliminates cavitation, making it ideal for various high-pressure hydraulic systems.

Get A Free Quote

Category :

Hydraulic Pumps &Power Units

Description

Key Features and Advantages:

1.High pressure, low noise, strong contamination resistance

2.Axial arrangement

3.Precision machined

4.Stable and smooth quantitative oil supply

5.Stable high pressure, efficient air exhaust, precise compound flow

6.Bottom suction design with strong suction capacity, no cavitation

Equipment Connection:

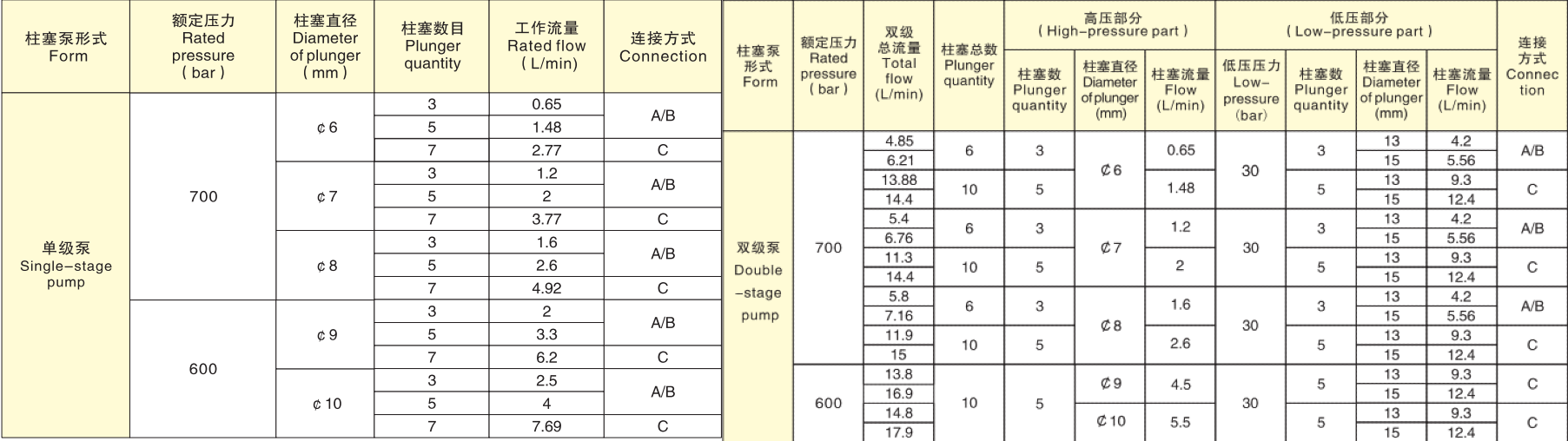

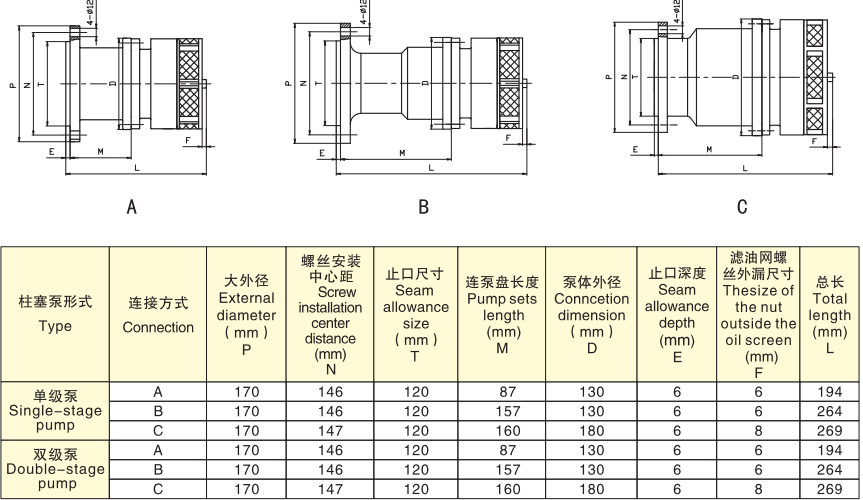

Technical Specs:

Related Products

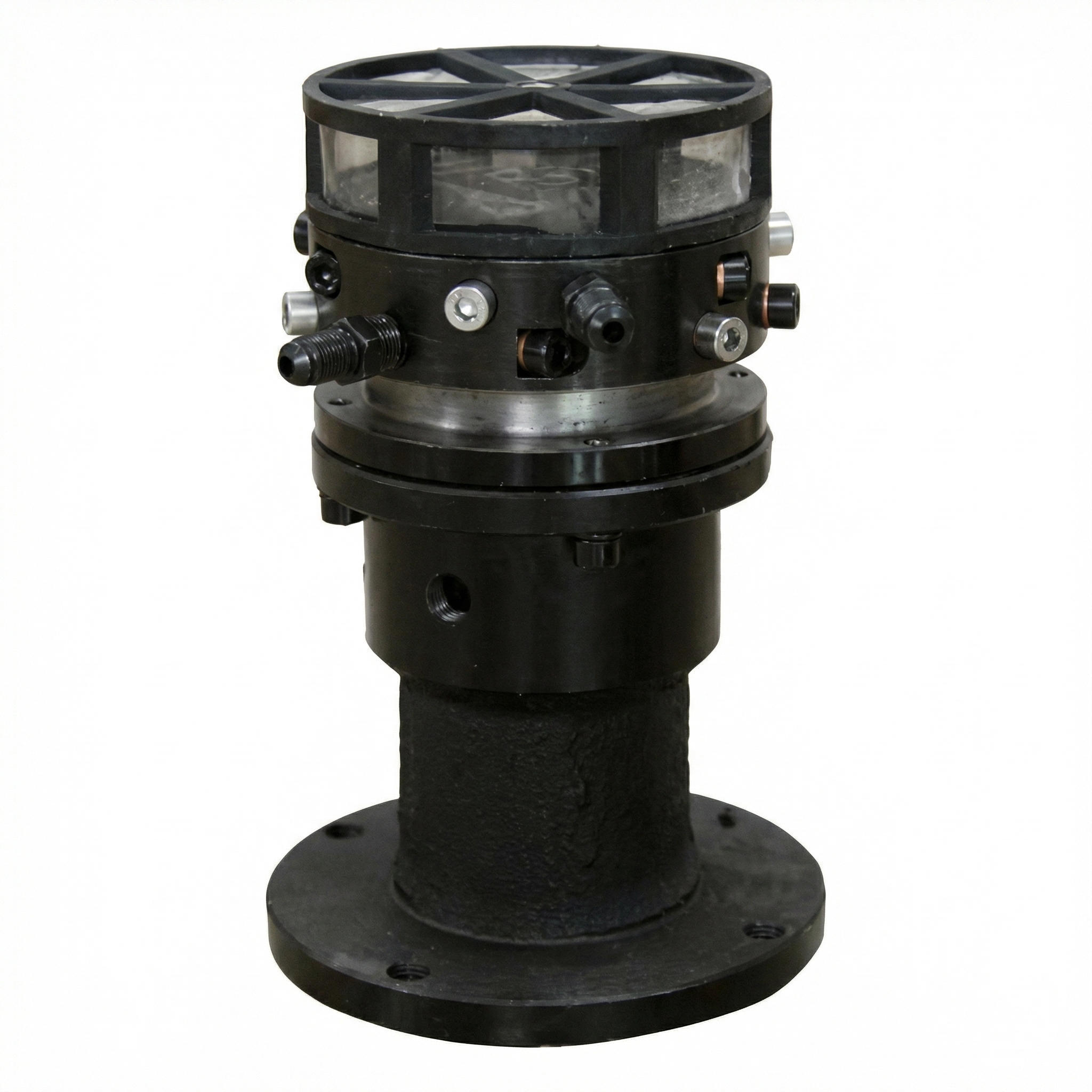

RK Series, Ultra-High Pressure Radial Piston Pump, Max.Pressure 1200bar

The RK Series ultra-high pressure radial piston pump features a radial arrangement structure combined with valve-type flow distribution, delivering high-pressure output, strong suction capability, and low-noise operation while effectively preventing cavitation. Precision machining paired with manual lapping processes ensures high assembly accuracy and stable operation. Customizable multi-row and multi-port configurations available.

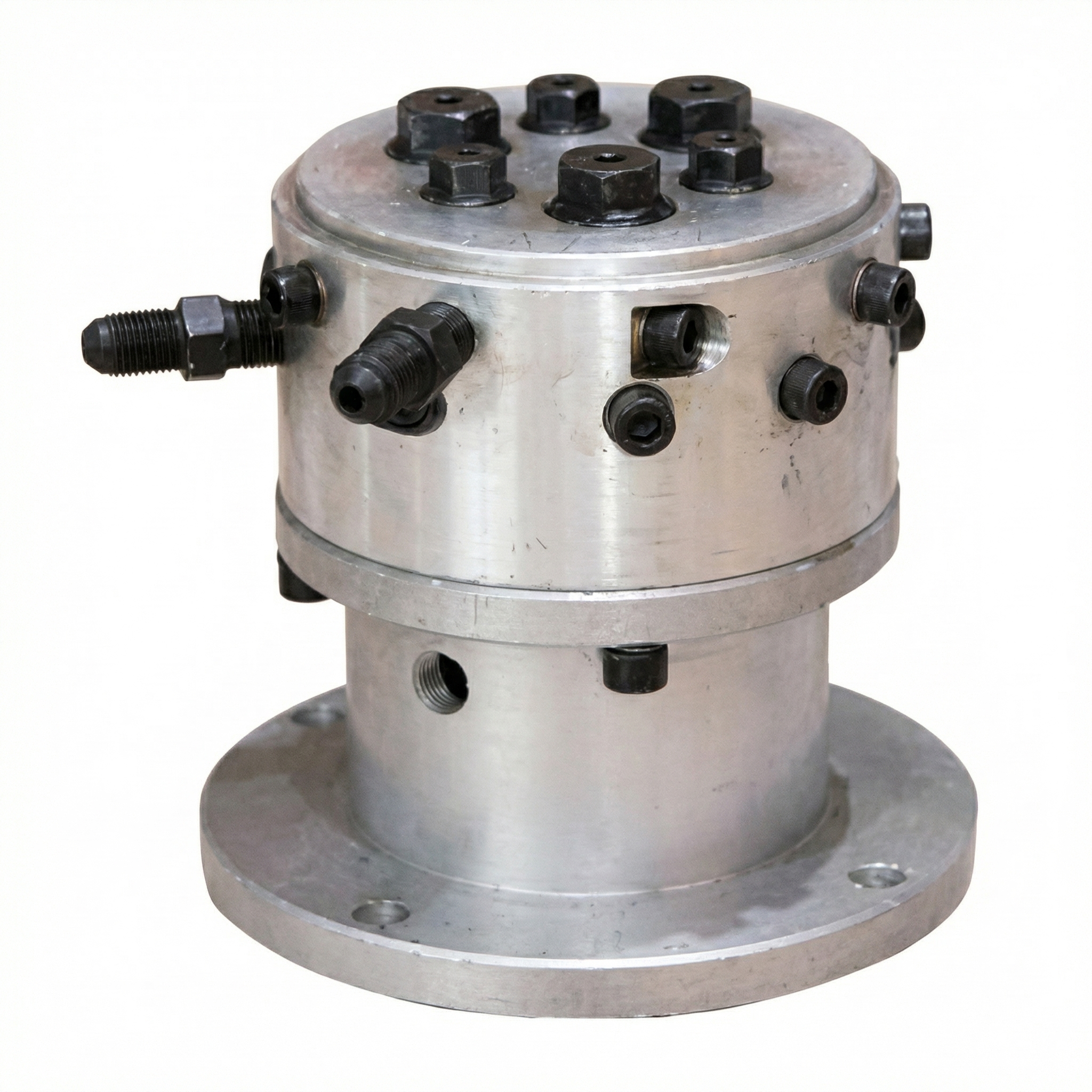

RK Series, High-Low Pressure Compound Radial Piston Pump
